AE-1 / AE-2
DTMF Encoder Electronics, 2 or 6 Memories, Trigger Send

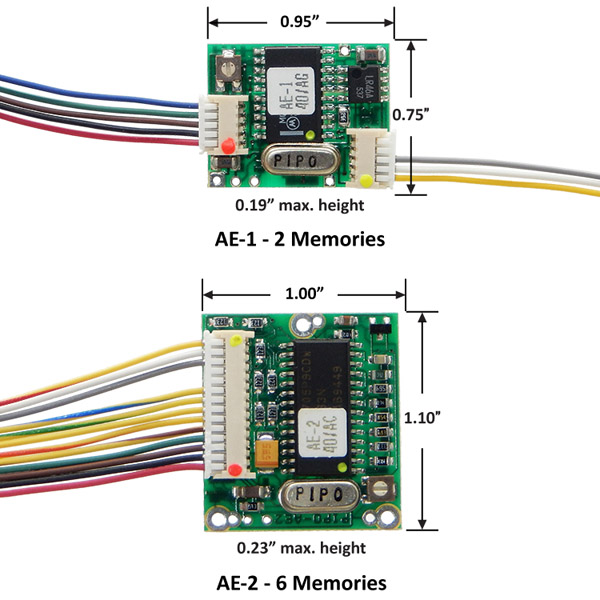

AE-1 & AE-2 – Description & Features:
DESCRIPTON:
The AE-1 and AE-2 are High-Capacity Micro Miniature High-Speed DTMF Encoders. They are designed into a microcomputer to generate the cleanest, most precise and transit-free DTMF signal ever!
The Options and Possibilities of the AE-1 and the AE-2 are ENDLESS. Being familiar with the PIPO Ver 4.0 programming features, any DTMF string configuration of pauses, waits, xmtr ptt, speed adjustments, delays, memory connect and more is possible.
Superb engineering and surface-mount components allow these encoders to fit into the smallest radios, hand-helds and even inside a microphone.
EASY PROGRAMMING:
• Field Programmable with AE-1/AE-2 Keyboard Programmer.
• Free Factory Programming 1-5 Units.
• Re-programmable ANYTIME.
FEATURES:
• High Density Package
• Nonvolatile Memory
• Micro-miniature Jack/Plug
• CW ID Option
• 5, 10, 20 DPS or Custom Time Base
• 180 Digits Total
• Mic Mute
• PTT Output
• 1000Hz Tone Feature
• Interfacing is accomplished by a MICRO JACK/PLUG, with 9” flying leads.

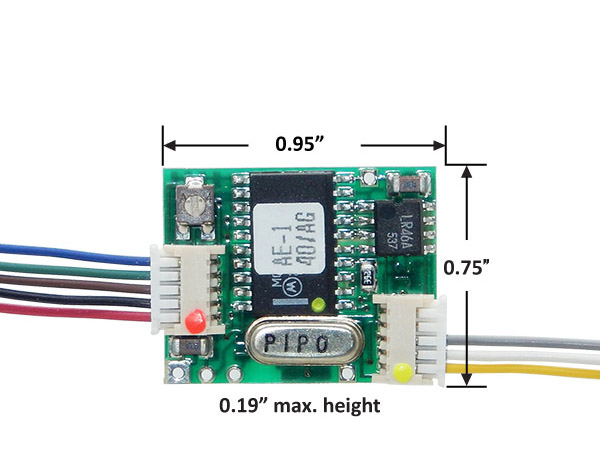

AE-1 – 2 Memories, 180 digits total
IDEAL FOR:
• 2-Way Radio, ANI/ENI
• Broadcast
• Security
• Traffic Control
INPUT/OUTPUT:
Jack 1 Pin (P-1)
1. BLU: ANI activate low
2. GRN: GND
3. BRN: PTT out 100ma max
4. BLK: DTMF out
5. RED: 6-26 VDC
Jack 2 Pin (P-2)
1. YEL: ENI activate low
2. WHI: MIC MUTE
3. GRY: END WAIT/STOP
4. + 5V PGM
5. + 5V PGM

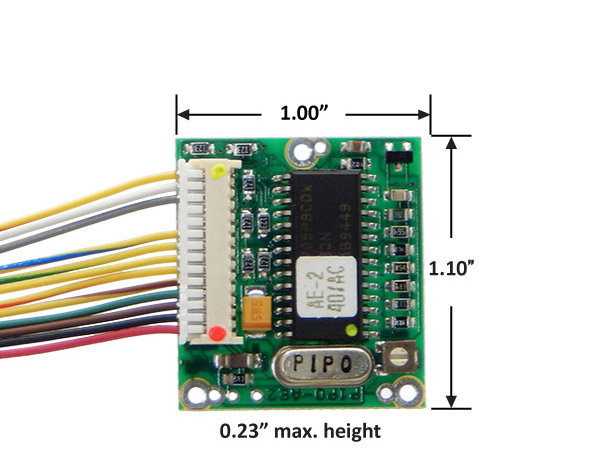

AE-2 – 6 Memories, 180 Digits Total
IDEAL FOR:
• Multipurpose Signaling
• Fleet Management
• Telemetry
INPUT/OUTPUT
Jack 1 Pin (P-1)
1. RED: 6-26 VDC
2. BLK: DTMF out
3. BRN: PTT out 100ma max
4. GRN: GND
5. Y/BRN: Memory 1 activate low
6. Y/ORG: Memory 3 activate low
7. YEL: Memory 4 activate low
8. Y/GRN: Memory 5 activate low
9. Y/BLU: Memory 6 activate low
10. ORG: Strap for pgming. only
11. ORG: Strap for pgming. only
12. GRY: END WAIT/STOP
13. WHI: MIC MUTE
14. Y/RED: Memory 2 activate low
Prices:
• AE-1, 2 Memories: $59.00
• AE-2, 6 Memories: $79.00
AE1 / AE2 Catalogs
AE-1 / AE-2 Schematics

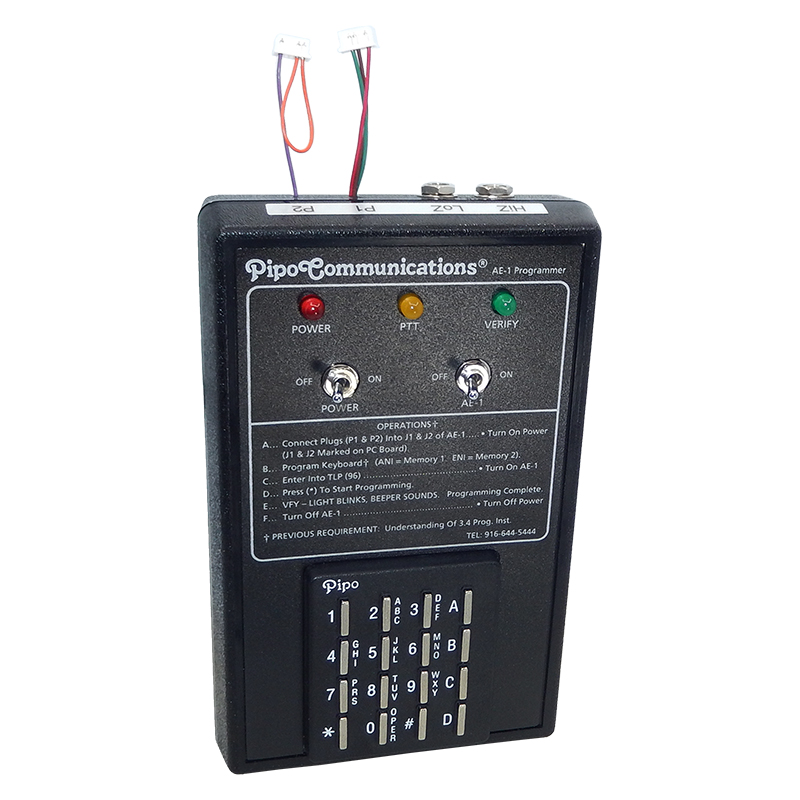

AE-1 / AE-2 – Keyboard Programmer
Programmer for the DTMF Encoder Electronics, 2 or 6 Memories, Trigger Send
AE-1 / AE-2 – Keyboard Programmer:
• Will Program The AE-1 or The AE-2
• Self-Contained
• Practical for field Use
• May Be Used As a DTMF Test Generator
• Hi z Output
• Low z Output -2db @ 600 ohms
• Internal Sounder
• Will Replicate Pipo ANI 4.0 Programming Functions
Programming the AE-1 is achieved by loading the digits and string commands into the Keyboard Programmer and then loading them into the AE-1.
Memory position 1 of the Programmer represents ANI.
Memory position 2 of the Programmer represents ENI.
Each position or memory has a 30-digit capacity, but may be expanded in the ANI (memory 1) and/or ENI (memory 2) by using MEMORY CONNECT to POSITIONS 3 to 6 of the Programmer for a total of 180 digits.
Programming the AE-2 is achieved in the same manner with the exception that the AE-2 has 6 memories.
The Programmer corresponds directly to the AE-2 with MEMORY 1 to 6, 30 digits each, 180 total.
Prices:
• AE-1 / AE-2 Keyboard Programmer: $250.00
AE1 / AE2 Programming Instructions
