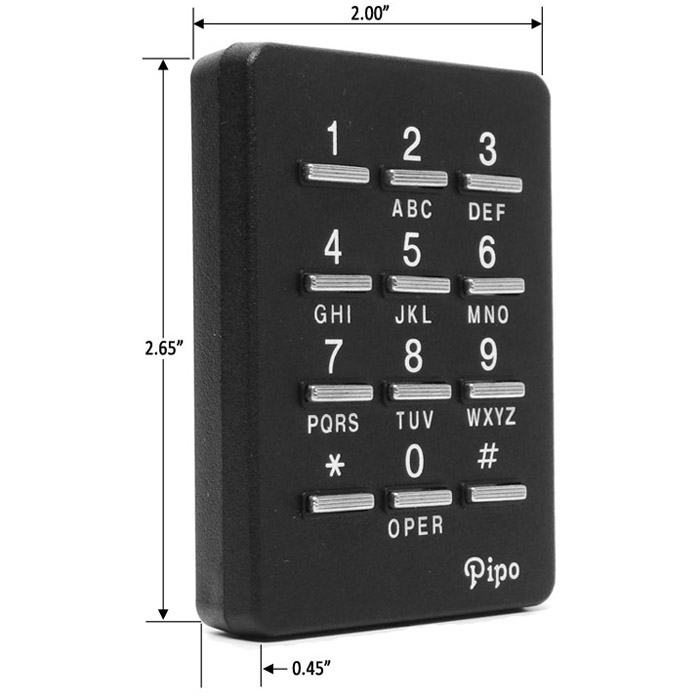

PK-1K, 12 Key ANI 4.0 25 Memories

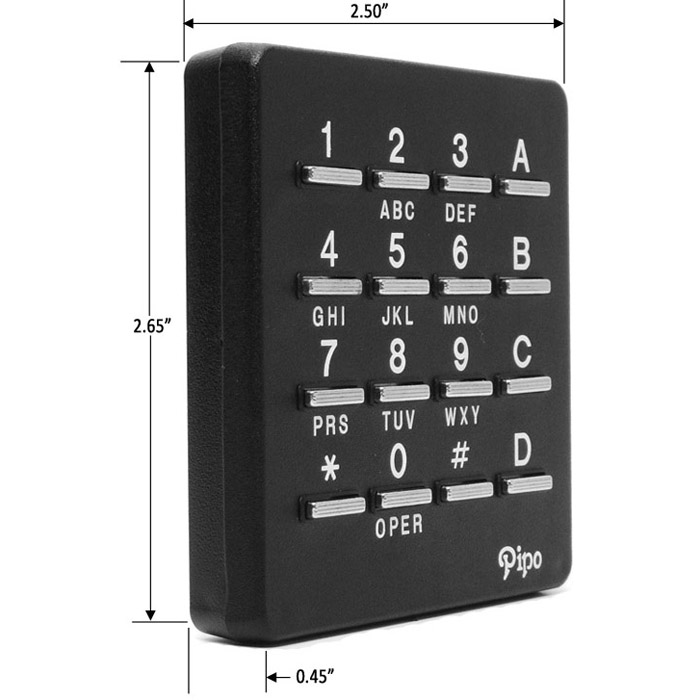

PK-2K, 16 Key ANI 4.0 25 Memories

Over the past years we’ve frequently found ways to improve our DTMF encoders, we’re not sure how we’ll ever top this one.

The new PIPO ANI Version 3.2 DTMF Encoder is based on an internal microprocessor programmed to generate the most precise, cleanest, transient-free DTMF signals ever! Unlike tone chip encoders, Ver 3.2 has no switching delays, settling time, level shifts, transients or decay characteristics, just a precise sequence of crisp, low-distortion digits at 5, 10 or 20 DPS. Eliminating burps and pops really enhances the decoder’s performance, particularly at high speeds.

Miniaturization is achieved with surface-mount components throughout the entire manufacturing process.

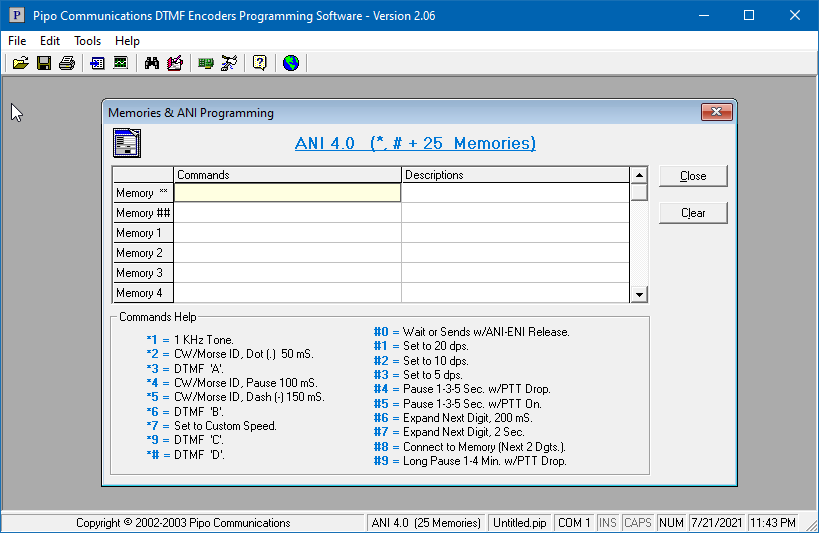

The Ver 3.2 encoder features 25 non-volatile, “user programmable” memories. Each will store sequences of up to 30 digits including speed adjustments, pauses, digit expanding, memory connect, PTT delays and drops all programmable from the keyboard. A built-in side tone confirms keystrokes and memory inputs.

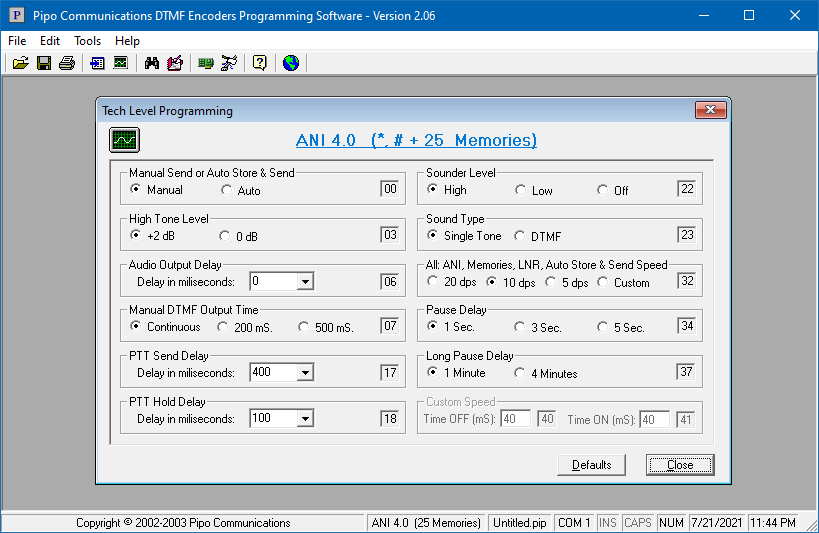

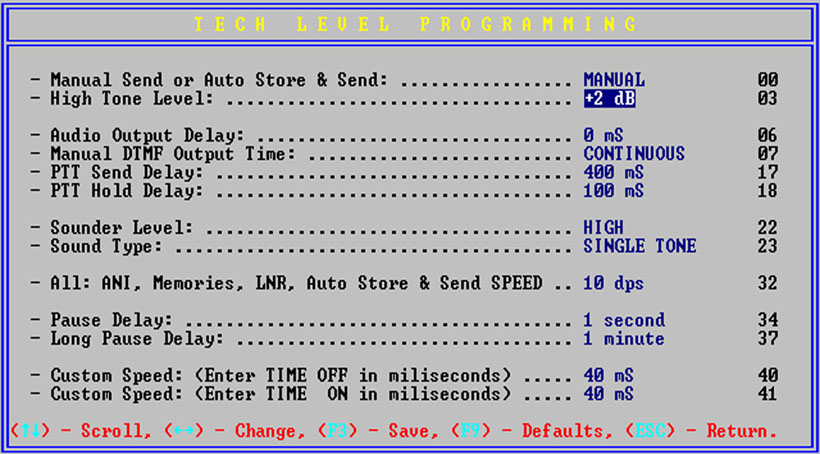

Two fully programmable ANI memories are standard. “Tech Level” programming, also accessed from the keyboard, provides full control of timing parameters and the ANI. Memories can be cloned.

The keyboard is the usual High Quality, Gold contact PIPO product the industry has relied on for 17 years.
