PK-7K / PK-8K v6.5
DTMF Encoder Keyboard, 9 Memories, W/ Sounder, Audio Mute, PTT Relay, PTT Hold POT Adj. & Mounting Frame.
Features:
• 12/16 Keys
• Thin Profile
• DTMF Memory Dialing 9 Memories
• Steel Keys
• DTMF Store & Send
• Sealed Gold Dome Contacts
• Contacts with Tactile Feel / Positive Feed-Back
• Whether Resistant / Dust Proof
• DTMF Single Tone Generator
• Variable Single Tone Generator (50Hz to 5KHz)
• PTT Keying Relay w/ Pot Adj. Delay
• One Touch Send (OTS)
• Level Output Pot Adjustable
• No DTMF Frequency Error
• High or Low Impedance Output
• Wide Voltage Operating Range (6 to 26 VDC)
• Piezo Side Tone
• Wide Temperature Operating Range (-22°F to +160°F)
Specifications:
• Power: 6-26 VDC
• Current w/ Relay: less than 600 μA Stby, 45 mA Operate
• Temperature: -22°F to +160°F
• Memory: 9 Locations, up to 30 Digits Each, Store & Send, Last Number Redial
• Audio Output: Adjustable -2 dB Max @ 600 Ohms
• Unbalanced Audio Output Level Hi-Z: No Load = 0 dBm (775mV RMS = 2Vpp)
• Unbalanced Audio Output Level Hi-Z: 600 OHMs Load = -40 dBm
• Unbalanced Audio Output Level LOW-Z: 600 OHMs Load = +1 dBm (51K Jumped)
• Distortion: Less than 2%
• High Speed Signaling: 5 DPS (100/100 mS), *Default: 10 DPS (50/50 mS), 20 DPS (25/25 mS)
• PTT Send Delay: 800 mS
• PTT Hold Delay: 1 sec
Prices:

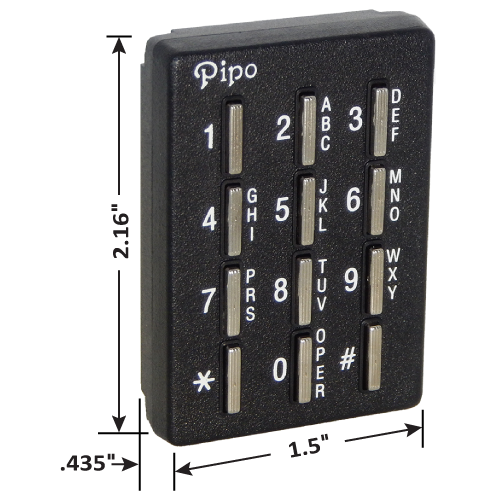

• PK-7VK v6.5: $89.00

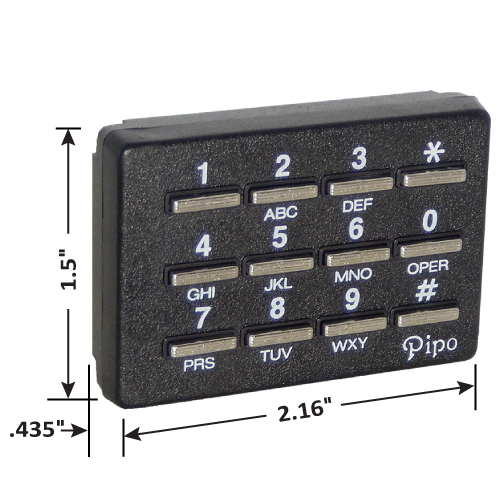

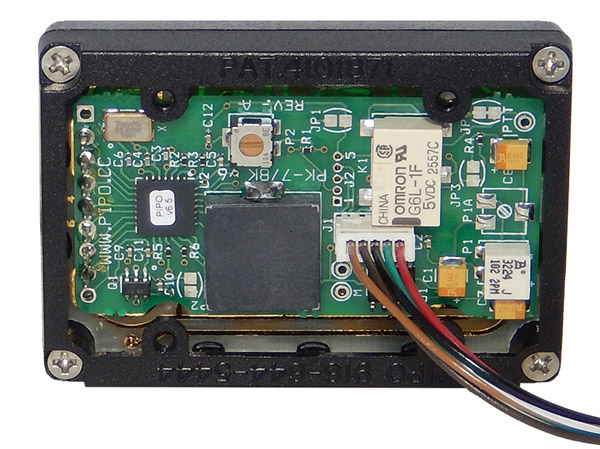

• PK-7HK v6.5: $89.00

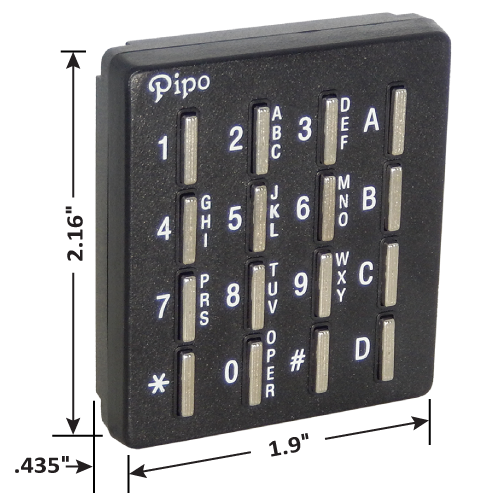

• PK-8VK v6.5: $94.00
